The ends of the sole slot connect the crown, sole and clubface -- providing more repulsion at impact.
Expanded effective sweet spot increases confidence at address.
HEAD MATERIAL / MANUFACTURING PROCESS | SUS630 / CASTING | ||||
FACE MATERIAL / MANUFACTURING PROCESS | HIGH-STRENGTH CUSTOM STEEL / ROLLED | ||||
SHAFT | ARMRQ X 47, ARMRQ X 52, ARMRQ X 43 | ||||
# (NO.) | 3W | 5W | |||
LOFT (DEG.) | 15 | 18 | |||
LIE ANGLE (DEG.) | 59.5 | 60.0 | |||
HEAD VOLUME (CM3) | 200 | 184 | |||
DISTANCE TO CENTER OF GRAVITY (MM) | 33.0 | 32.5 | |||
HEIGHT TO CENTER OF GRAVITY (MM) | 24.0 | 24.0 | |||
DEPTH TO CENTER OF GRAVITY (MM) | 33.5 | 32.5 | |||
GRAVITY ANGLE (DEG.) | 25.5 | 23.5 | |||
LENGTH (INCHES) | 43.0 | 42.5 | |||
SWING WEIGHT・ GROSS WEIGHT (G) |
ARMRQ X 47 | R | D0・297 | D0・301 | |
SR | D1・300 | D1・304 | |||
S | D1・301 | D1・305 | |||
ARMRQ X 52 | R | D0・308 | D0・312 | ||
SR | D1・300 | D1・315 | |||
S | D1・312 | D1・316 | |||
ARMRQ X 43 | R | D0・294 | D0・298 | ||
S | D1・297 | D1・301 |

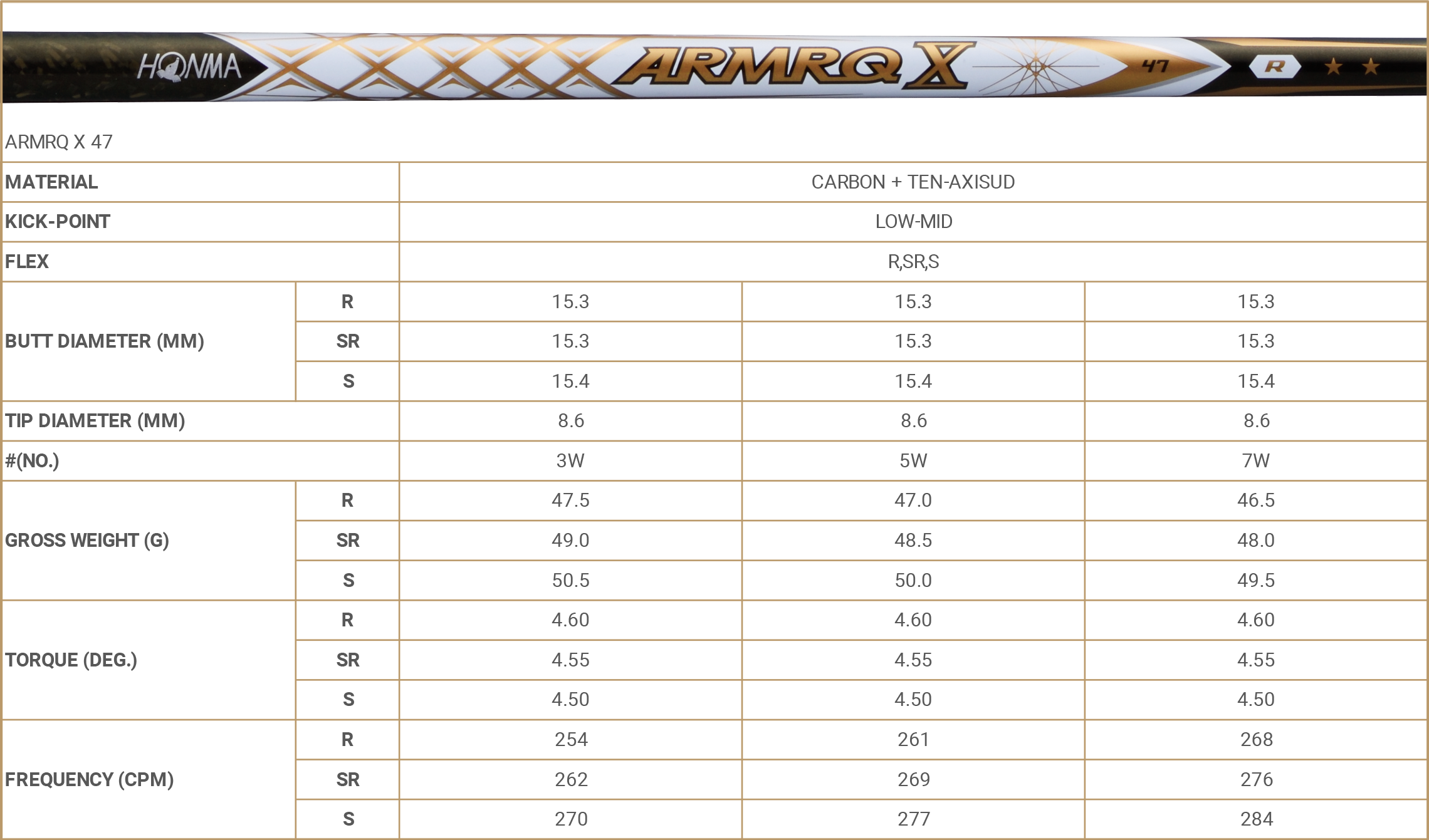

MATERIAL | CARBON + TEN-AXISUD | |||
KICK-POINT | LOW-MID | |||
FLEX | R,SR,S | |||
BUTT DIAMETER (MM) | R | 15.3 | 15.3 | 15.3 |
SR | 15.3 | 15.3 | 15.3 | |
S | 15.4 | 15.4 | 15.4 | |
TIP DIAMETER (MM) | 8.6 | 8.6 | 8.6 | |
#(NO.) | 3W | 5W | 7W | |
GROSS WEIGHT (G) | R | 47.5 | 47.0 | 46.5 |
SR | 49.0 | 48.5 | 48.0 | |
S | 50.5 | 50.0 | 49.5 | |
TORQUE (DEG.) | R | 4.60 | 4.60 | 4.60 |
SR | 4.55 | 4.55 | 4.55 | |
S | 4.50 | 4.50 | 4.50 | |
FREQUENCY (CPM) | R | 254 | 261 | 268 |
SR | 262 | 269 | 276 | |
S | 270 | 277 | 284 |
MATERIAL | CARBON + TEN-AXISUD | |||
KICK-POINT | LOW-MID | |||
FLEX | R,SR,S | |||
BUTT DIAMETER (MM) | R | 15.4 | 15.4 | 15.4 |
SR | 15.4 | 15.4 | 15.4 | |
S | 15.5 | 15.5 | 15.5 | |
TIP DIAMETER (MM) | 8.6 | 8.6 | 8.6 | |
#(NO.) | 3W | 5W | 7W | |
GROSS WEIGHT (G) | R | 52.5 | 52.0 | 51.5 |
SR | 54.0 | 53.5 | 53.0 | |
S | 55.5 | 55.0 | 54.5 | |
TORQUE (DEG.) | R | 3.90 | 3.90 | 3.90 |
SR | 3.85 | 3.85 | 3.85 | |
S | 3.80 | 3.80 | 3.80 | |
FREQUENCY (CPM) | R | 270 | 277 | 284 |
SR | 278 | 285 | 292 | |
S | 286 | 293 | 300 |

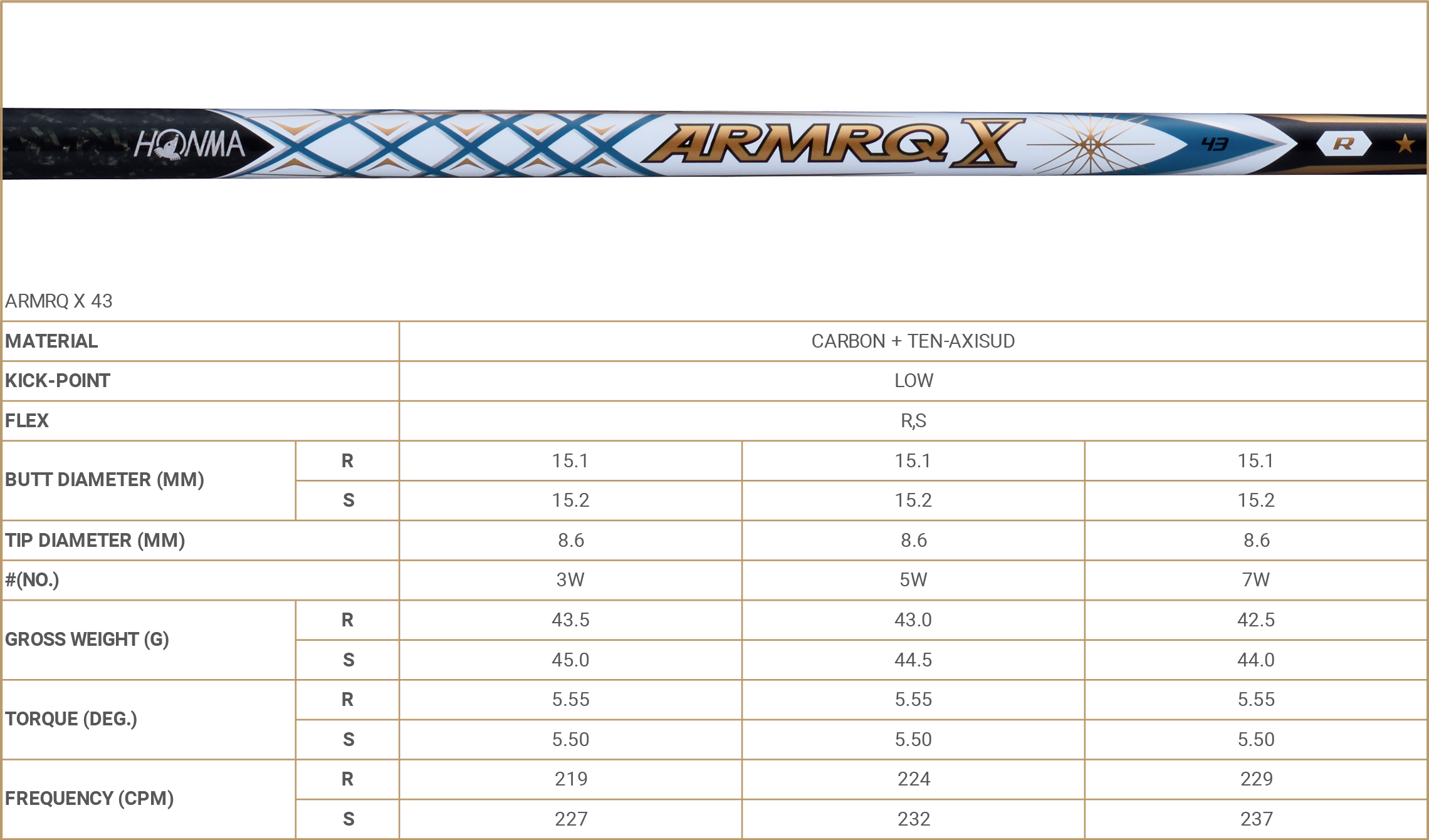

MATERIAL | CARBON + TEN-AXISUD | |||
KICK-POINT | LOW | |||
FLEX | R,S | |||
BUTT DIAMETER (MM) | R | 15.1 | 15.1 | 15.1 |
S | 15.2 | 15.2 | 15.2 | |
TIP DIAMETER (MM) | 8.6 | 8.6 | 8.6 | |
#(NO.) | 3W | 5W | 7W | |
GROSS WEIGHT (G) | R | 43.5 | 43.0 | 42.5 |
S | 45.0 | 44.5 | 44.0 | |
TORQUE (DEG.) | R | 5.55 | 5.55 | 5.55 |
S | 5.50 | 5.50 | 5.50 | |
FREQUENCY (CPM) | R | 219 | 224 | 229 |
S | 227 | 232 | 237 |
